雷射功率計

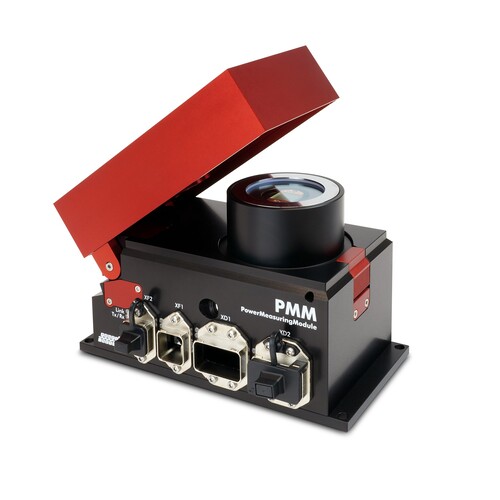

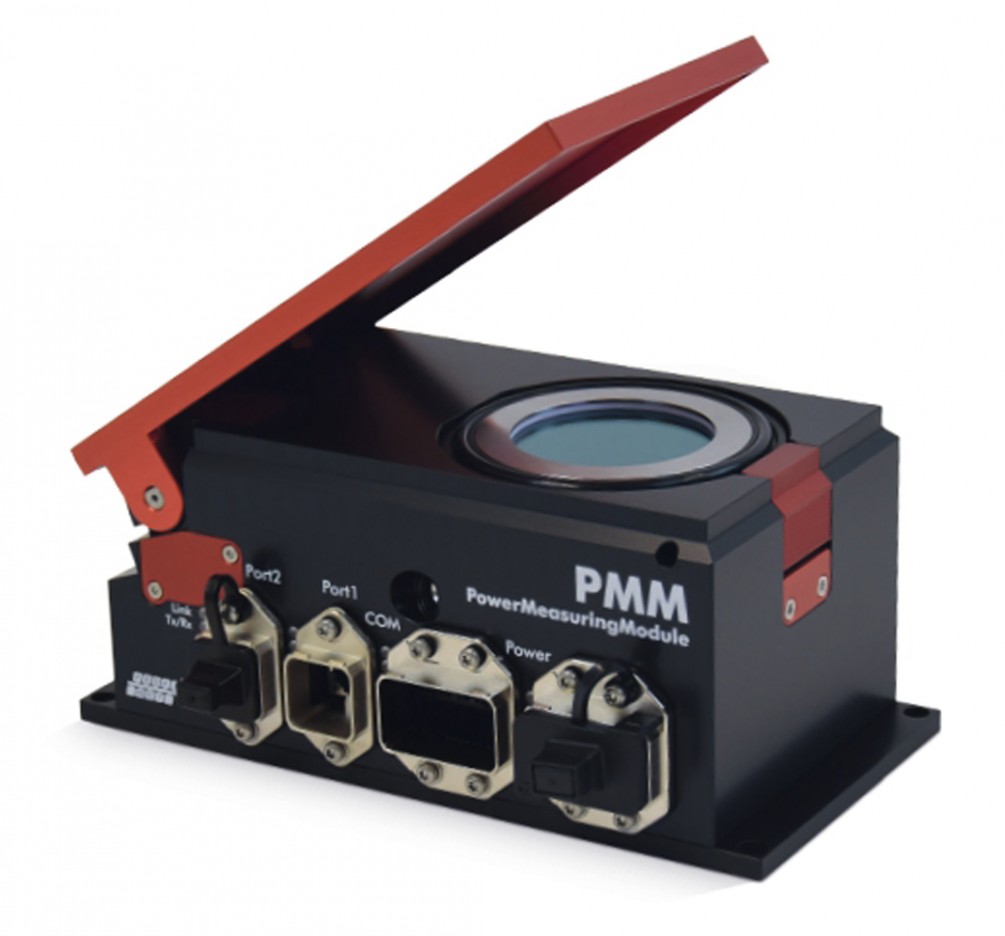

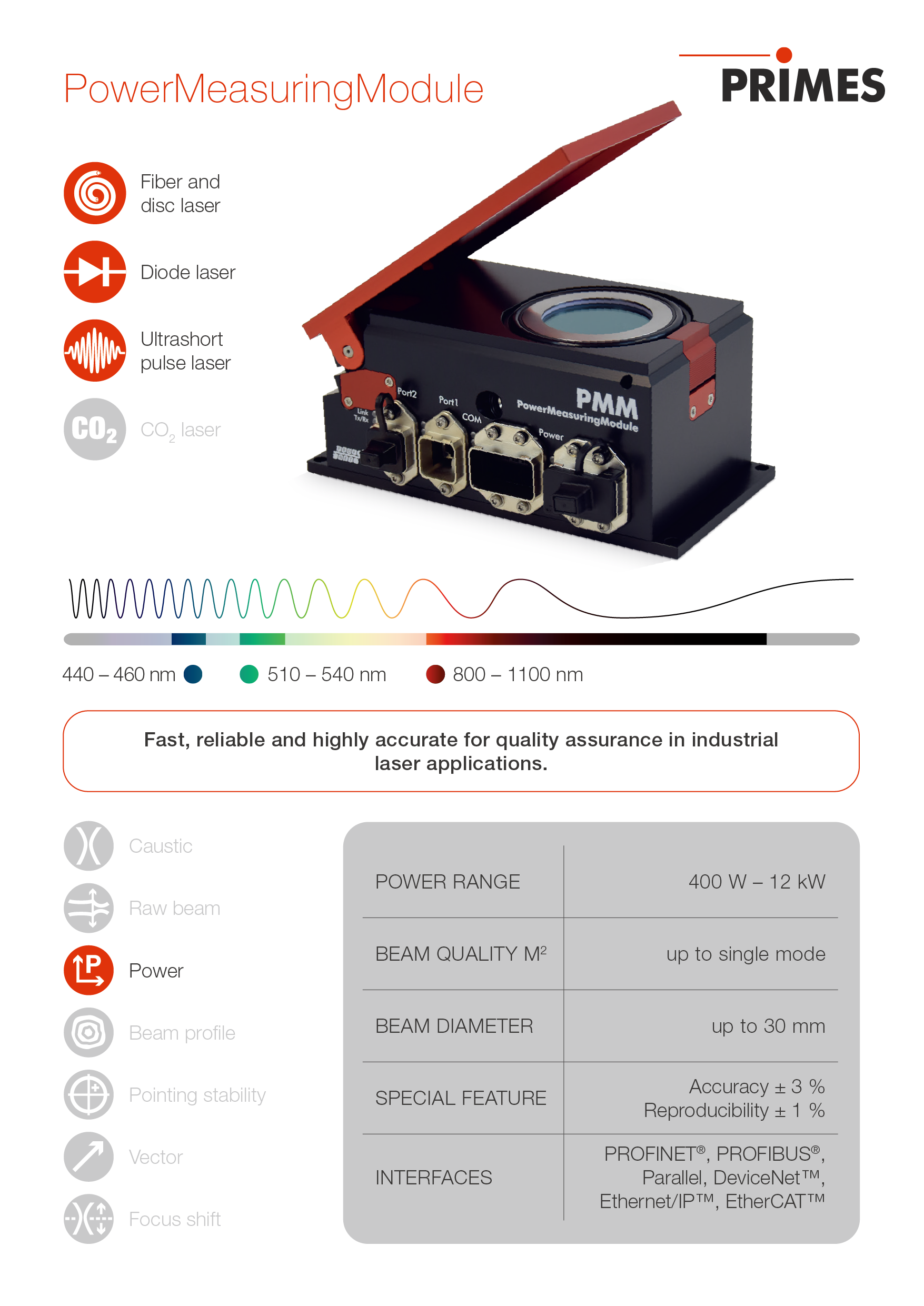

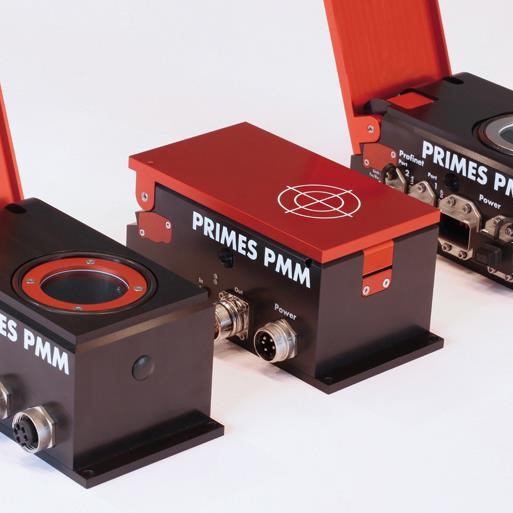

PowerMeasuringModule PMM
生產線專用功率計

高功率雷射生產線上測量的理想選擇

規格書下載詢問

超高速、精準，專為雷射製造打造

這款高速雷射功率計可測量最高 12kW 的雷射功率，支援 440–460nm、510–540nm 與 800–1100nm 波長範圍，測量時間僅需 3 秒，快速又可靠。

產品特色：

極速讀取
數秒內完成精準功率測量

寬波長支援
涵蓋藍光、綠光及近紅外（NIR）雷射範圍

不受光束參數影響
測量不受光斑大小、位置或初始溫度影響，僅與功率密度有關

高功率處理能力
可測量高達 12kW 的雷射

多種雷射類型相容
支援連續波（CW）、脈衝與超短脈衝雷射

工業整合就緒
可整合至機器人製造單元與自動化產線中

多樣介面選擇
提供多種連接方式，適應各類系統需求

工業級設計
特別適用於自動化生產、汽車製造與其他雷射應用產線

為速度、精度與自動化而生

無論在何處、以何種方式測量，這款功率計都能為您提供快速、穩定的雷射功率量測，全面提升生產效率。

MEASUREMENT PARAMETERS	PMM
Power range	400 – 12 000 W ¹⁾
Wavelength range	440 – 460 nm (BG), 510 – 540 nm (BG) and 800 – 1 100 nm (NIR)
Max. beam diameter	30 mm
Max. power density (peak) on the absorber (approx. 25 mm underneath the protective window) at beam diameters: > 10 mm 10 – 3 mm 3 – 1.5 mm < 1.5 mm	4 kW/cm² 5 kW/cm² 10 kW/cm² 12 kW/cm²
Irradiation time (cw & pulsed operation)¹⁾	0.1 – 2.0 s (depending on laser power) 0.1 – 1.0 s (type AP3s)
Pulse length (Pulsed operation)	> 50 μs: Determining average and peak power up to 10 kHz at 50 % duty cycle < 50 μs: Determining average power
Max. laser rise time	< 1% of irradiation time
Energy per measurement	400 – 3 500 J
Recommended energy per measurement	400 – 1 000 J
Total duration until measurement value output	< 5 s (AP3s); for devices with former thermalization standard: < 15 s
Nominal measurement frequency	500 J: 1 cycle / 2 min; 1 000 J: 1 cycle /4 min
DEVICE PARAMETERS
Max. absorber temperature	120 °C
Max. angle of incidence perpendicular to inlet aperture	± 10 °
Accuracy at angle of incidence up to 10 °	± 3 %
Reproducibility	± 1 %
SUPPLY DATA
Power supply DC IN DC OUT	24 V DC +25 % / -20 %; 250 mA 24 V DC / max. 5 A
Temperature range for charging the lithium-ion cell	0 – 45 °C
COMMUNICATION
Interfaces (alternatively)	PROFINET® copper/fiber optics, PROFIBUS®, Parallel, DeviceNet™, Ethernet/IP™, EtherCAT™
DIMENSIONS AND WEIGHT
Dimensions (L x W x H) (without connectors)	200 × 100 × 89 mm (closed) 246 × 100 × 227 mm (open)
Weight (approx.)	2.2 kg

¹⁾The stated limit values are to be understood in correlation with the permitted maximum energy (E = P ∙ t).
